Place of Origin | Chongqing, China |
Brand Name | HUAN NENG |
Certification | CE, ISO 14001, ISO 9001 |
Model Number | KN3500 |
3KW Electric Start Low Vibration Gasoline Generator
Advantages:
1. A good helper for outdoor construction, engineering electricity, etc.;
2. Reliable quality, stable performance and durability;
3. All-copper inductive motor, stable waveform, sufficient power and strong load operation;
Fourth, surging power, sufficient horsepower, strong power, fuel saving and energy saving, stable performance;
5. Full intelligent protection system, with dual protection functions of oil shortage and overload;
6. Stylish and atmospheric side panel design.
Promise:
Carry the principal of satisfying the needs of consumers , long term the pure spare parts technical advice supervising installment and Commissioning transport gensets and training operator. After receive the feedback of quality problem, answer the consumer and supply problem solve program in 24 hours. Do our best to supply satisfied service.
System:
I Service before sale
Sales Engineer supply technical advice and auxiliary supervising, such as, choosing type auxiliary generator room design solve the problem come across when use the equipment.
II Service during sale
Supply customer production infomation and arrange shippment for customer.
III Service after sale
1 Supply Engine room design free of Charge
2 Supply installment and Commissioning Guide free of Charge
3 Train the operator and maintain persons free of charge;
4 Perform files for the consumer, in hot persuit of service regular inspection lifelong service.
5 supply the pure spare parts year in market price,
6 Supply technology assistance for your whole life.
Guarantee:
1 Guarantee Period: One years after the date of shipment from the manufacturer's plant or 1000 hours from the manufactured date,which comes first.
2 Repair or Replacement: PowerFriend Warrants to bear any repair or replacement charge under terms of warranty with the defects in design, material and workmanship.
3 Warranty limitation:
1) misuse& Lack of proper maintenance,
2) Not perform operation manual,
3) Generator modified without our Approval or Direction,
4) non-use Genuine parts,
5) Wearing Parts( Engine air filter & Oil filter )
Technical parameters:
Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
Type | Single cylinder, 4-stroke, air-cooled | |||||
Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
Ignition system | TCL | |||||
Starting system | Recoil/Electric | |||||
Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs |

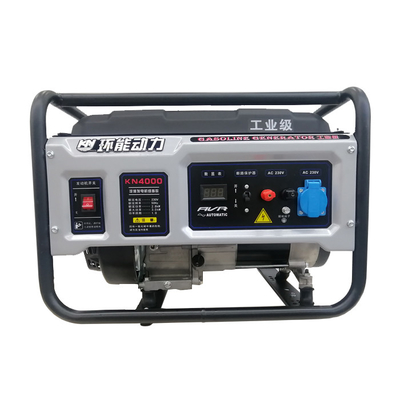

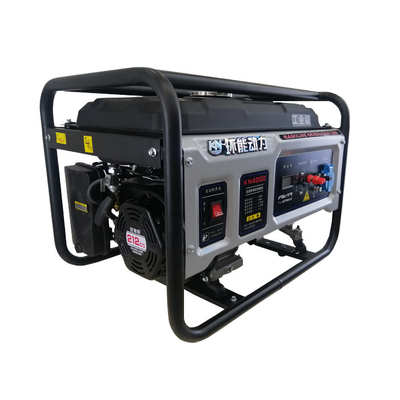

Product pictures:
