Place of Origin | Chongqing, China |
Brand Name | HUAN NENG |
Certification | CE, ISO 14001, ISO 9001 |
Model Number | KN3500 |
50Hz Rated Frequency Recoil Electric Portable Gasoline Generator 5KW
Advantages:
1. A good helper for outdoor construction, engineering electricity, etc.;
2. Reliable quality, stable performance and durability;
3. All-copper inductive motor, stable waveform, sufficient power and strong load operation;
Fourth, surging power, sufficient horsepower, strong power, fuel saving and energy saving, stable performance;
5. Full intelligent protection system, with dual protection functions of oil shortage and overload;
6. Stylish and atmospheric side panel design.
promise:
Based on the principle of meeting the needs of users, we provide long-term technical advice on pure spare parts, supervise the installation and commissioning of transportation generator sets, and train operators. Reply to consumers and provide problem solutions within 24 hours after receiving feedback on quality problems. Make every effort to provide satisfactory service.
system :
1. Pre-sales service
Sales engineers provide technical advice and auxiliary supervision, such as selecting auxiliary generator room design and solving problems encountered in the use of equipment.
2. In-sale service
Provide customers with production materials and arrange delivery.
3. After-sales service
1. Free computer room design
Free installation and debugging guidance
Free training for operation and maintenance personnel;
Do a good job of archival work for consumers, constantly pursue service, regularly check, and serve for life.
5. Supply pure spare parts at market price throughout the year.
6. Lifetime technical support
ensure :
Warranty: 1 year from the date of shipment from the manufacturer's factory, or 1000 hours from the date of manufacture, which is the first.
Repair or Replacement: PowerFriend warrants the cost of any repair or replacement due to defects in design, materials and workmanship.
3 Warranty Limitations:
1) Misuse and lack of proper maintenance;
2) The operating instructions are not implemented;
3) Modification of generators without our approval or instruction
4) Do not use original parts
5) Wearing parts (engine air filter, oil filter)
Technical parameters:
Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
Type | Single cylinder, 4-stroke, air-cooled | |||||
Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
Ignition system | TCL | |||||
Starting system | Recoil/Electric | |||||
Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs |

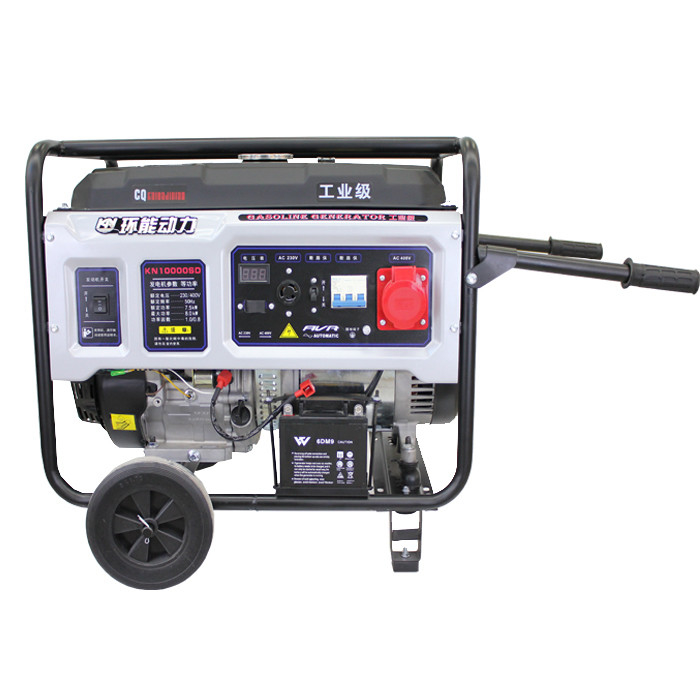

Product pictures:
